Slurry Test Kits

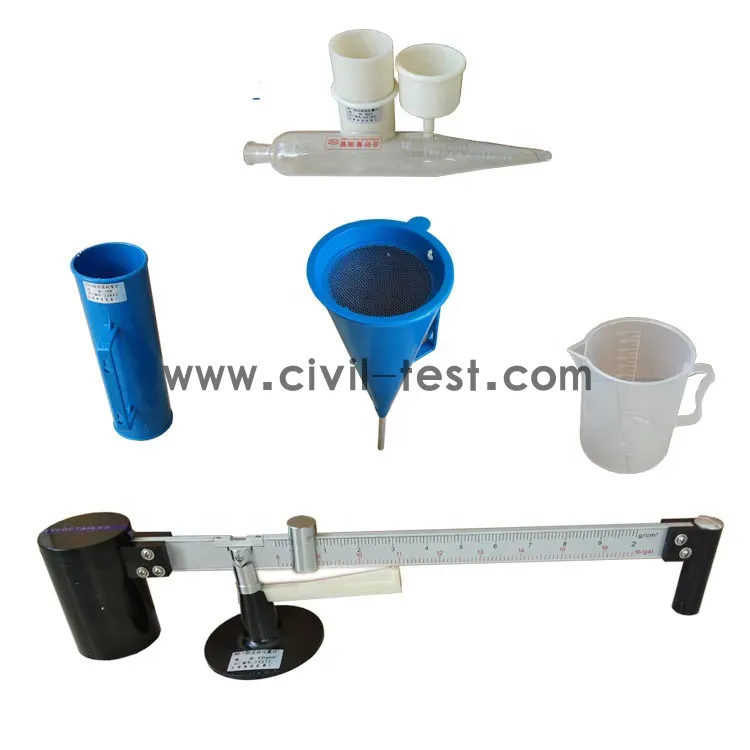

Name: Sand Content Kit
Descriptions:
For determining the sand content of drilling mud.
Working Principle
1. Dilute the quantitative drilling fluid sample and filter it through a filter screen
2. Rinse the sand on the screen with distilled water so that the sand enters the measuring tube through the funnel. The measuring tube measures the residual sand content expressed as a volume percentage
Standard: ASTM D 4381
Sand Content of Drilling Mud
Aperture of filter mesh | 0.074mm ( Mesh 200 ) |
Capacity of glass cylinder | 100ml |
Range of measuring range | 0~20% |
Dimension Case (mm) | 530 (L) x 140 (W) x 100 (H) |
Approx. Weight | 4 kg |
Technical Specifications
