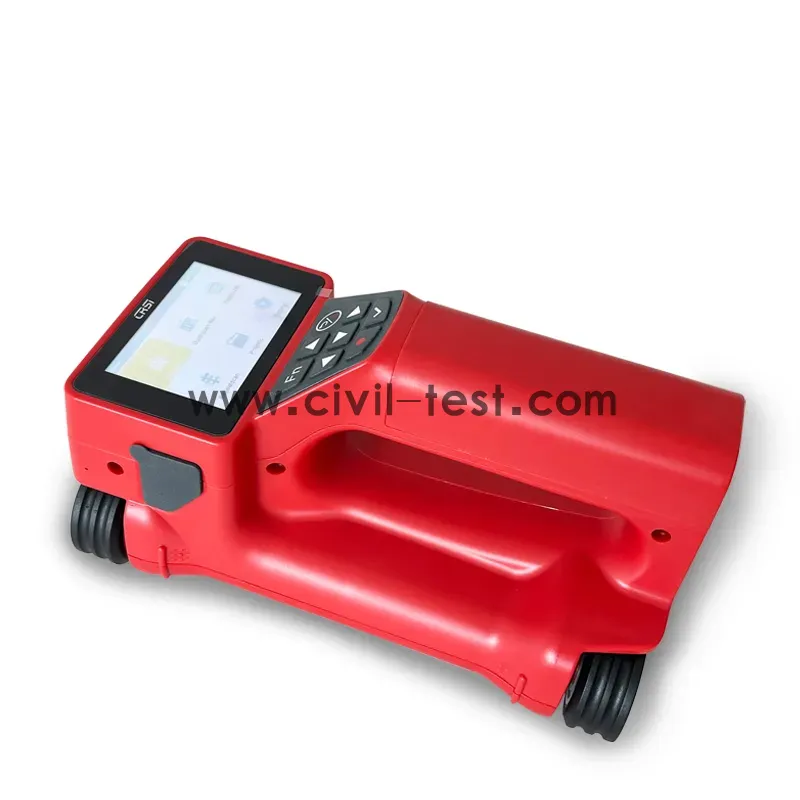

Ferroscan System
Model: CS-709 Item Name : Ferroscan System
Features
· Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot struc-tural analysis
· Smart algorithm helps accurate depth measure-ments for rebar
· Wide sensor area enables quick and easy scan over large areas
· Record scan data for documentation and structural analysis
TECHNICAL PARAMETERS
Image display: color shows the thickness of the protective layer of steel reinforcement, also showing the thickness of the protective layer of steel reinforcement, steel spacing
Test range of protective layer thickness: 0-210mm (the larger the diameter of reinforcement, the deeper the test depth)
Application range of reinforcement: dia.6~ 50mm Standard Rebar
Positioning accuracy: 1% or ±1mm
Maximum scanning distance: 50m, with real-time scanning and recording scanning functions
Statistical function: at any time display the specified channel steel bar position, protective layer thickness, deviation, qualified rate
Fixed point retest: 1~6 times, users can set at will, retest value list
Scanning area grid Settings: 600*600mm or 1200*1200mm optional
Regional scanning: Software can splice image scanning data
Filter range: 0~200mm, conducive to eliminate invalid data
Path selection function: 1~7 Optional
Component type: According to the state, all component types can be selected
Data storage capacity: not less than 32G (SD card can be expanded)
Data interface: USB (can be used as a card reader)
Data transmission rate: 4MB/s
Display type: 480X320 lattice TFT LCD, touch screen, capacitor screen
Power supply: battery working voltage 7.1~8.4V, battery life: 24 hours
Protection level: IP54
Weight: 1.2kg
Size (mm) : 240*132*135
Relative air humidity 90%
The operating temperature is -10~50ºC, and the storage temperature is 25~60 ºC
