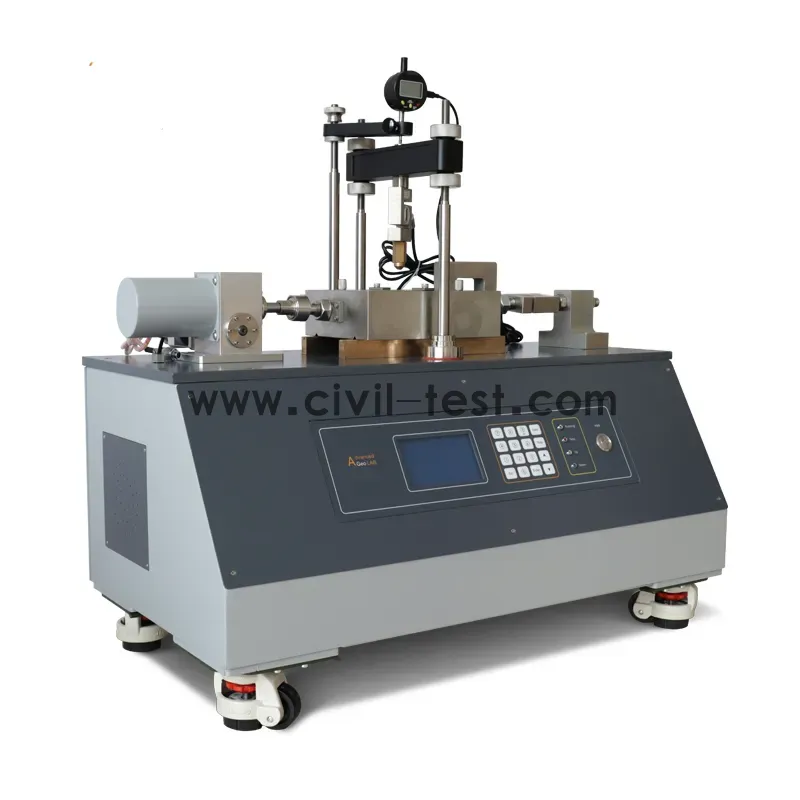

DDS-5F Automatic Shear Test System

short description:

DDS-5F Automatic Shear Test System . This new microprocessor based advanced model, is a stand-alone machine, driven by a high-solution stepper motor with epicyclical reduction gear with a reduced backlash. Incorporates a pneumatic closed loop system for the automatic application of the axial pressure by a high performance pressure regulator, with the main advantage of eliminating the manual loading of the dead weights.


content details

Model: DDS-5F / DDS-5FM   Product Name : Automatic Shear Test System


ELECTRONIC UNIT

The electronic parts of the system is based on our “ Automax ” unit, this is a microprocessor system that reads and processes the force, axial pressure and displacement readings, manages the motor, the pressure valve, the safety systems and the test steps through closed loop systems. It features a front panel in scratchproof poly carbon with a ten keyboard and a large monochromatic graphic display.


ELECTRONIC TRANSDUCERS SUPPLIED WITH THE SYSTEM
The system is supplied complete with:
· +/-5KN capacity load cell, bi-directional type (compression and tension ), nominal sensitivity 3mv/v, accuracy +/-0.15%F.S.
· 5KN capacity load cell, bi-directional type (compression and tension ), nominal sensitivity 3mv/v, accuracy +/-0.15%F.S.
· 12.7mm displacement transducer, accuracy 0.003mm, resolution 0.001mm.
· 25.4mm displacement transducer, same specification as above.

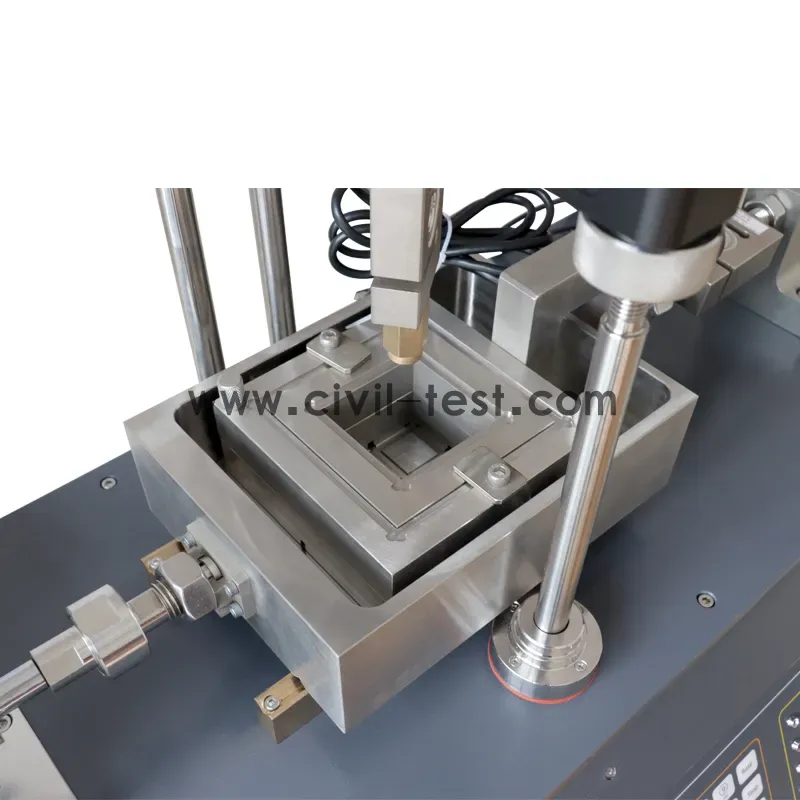

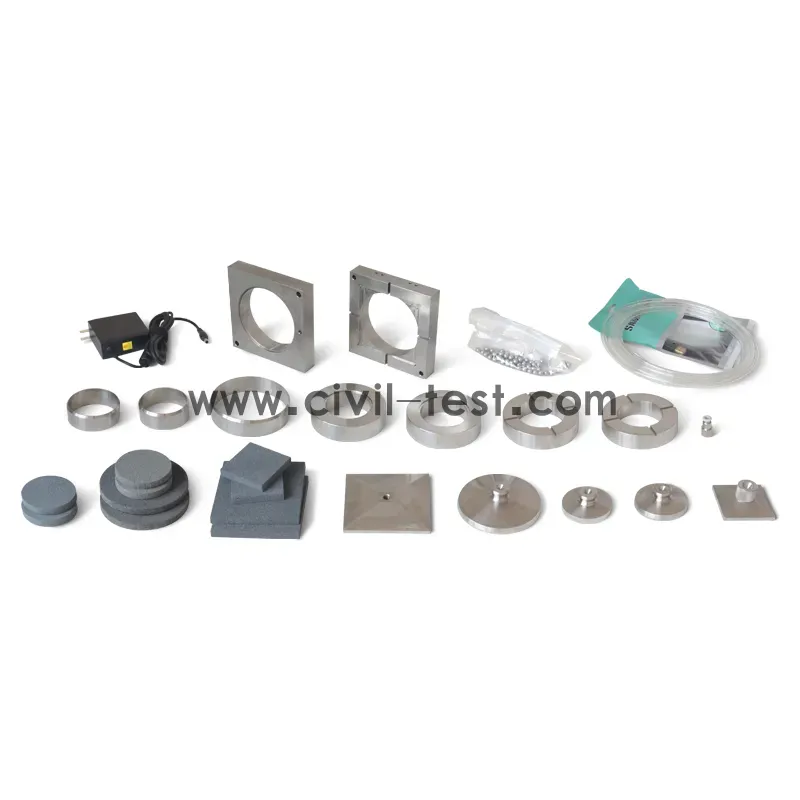

SHEAR BOX ACCESSORIES


All shear box assemblies are constructed of brass and are designed to contain water that surrounds the specimen. They consist of a square box with a rigid walled round or square hole complete with adapter loading pad, retaining plate, 2 porous stones.

DATA ACQUISITION SYSTEMS
The main interface is composed by 240*128 LCD. The test parameters can be shown and read on the LCD .
Cycle: means times of cyclic shear.
Shear diaplac.(mm):shearing movement.
Rate (mm/min) : shear rate.
Horiz. diaplac.(mm):Horizontal displacement.

SOFTWARE

Acquisition Module.
Standard Consolidation Module.
Standard Shear Module.
Quick Shear Module.
Repeated Shear Module (Option).Post processing function(Option).
