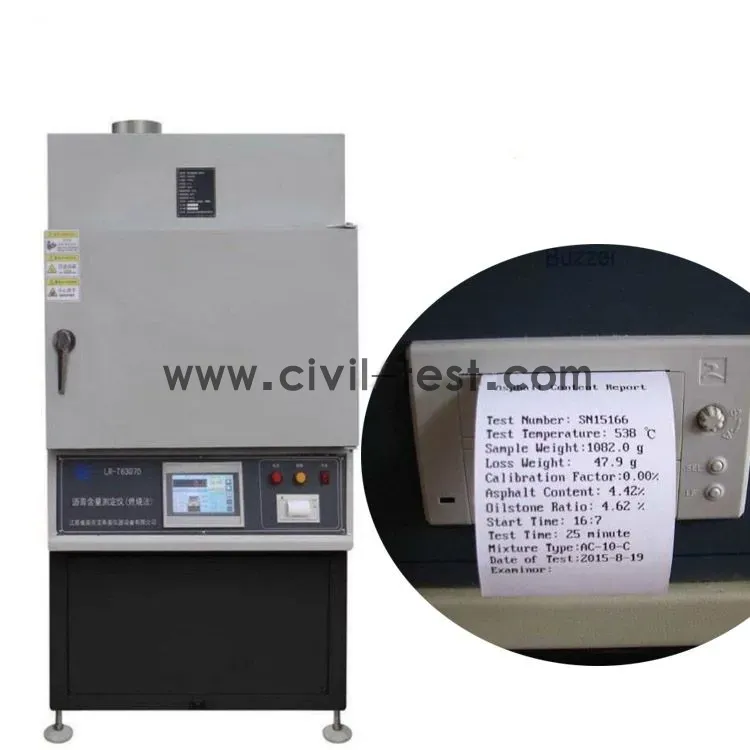

Asphalt binder analyzer
Product Name : Asphalt binder analyzer by ignition method
Summary:
Asphalt binder analyzer by ignition method meets ASTM d6307-98 and AASHTO t308-99, which can continuously, accurately, safely and reliably determine the asphalt content in asphalt mixture, and can meet the requirements of large-scale continuous production, highway supervision and scientific research institutions in the mixing plant.
Ignition Method Asphalt Content Tester is used to determine the content of asphalt in asphalt mixture.
The touch screen is used to display, the screen is intuitive and the operation is simple. Input conditions, the instrument can automatically judge the end and print the data report at the same time. The historical data report can be viewed and printed on the touch screen. It has USB transfer function to transfer all reports in touch screen to USB flash disk.
Meeting standard : ASTM D6307-98 and AASHTO T308-99
Main technical parameters and performance
Model | |
Product Name | Asphalt Blinder Analysis Tester |
Chamber size | 300 mm * width: 300 mm * depth: 500 mm |
Temp range of combustion chamber | 800 ℃ |
Working temp of combustion chamber | 538 ± 5 ℃ |
Accuracy of combustion chamber | ± 2 ℃ |
Power | 9KW |
Balance Range | 10lg |
Accuracy of balance | 0.1g |
Maximum sample weight | 3500g (best sample weight: 1300-1800g) |
Test stability coefficient | 0.1% |
Working voltage | 220V |
Product Size | 117X65X80 cm |
Net weight | 220kg |
