Aggregate Grid Sieve Set
Model: A-048 Product Name: Aggregate Grid Sieve Set
Standard: EN 933-3 UNI 8520-18 NF P18-561 NLT 354
Sampler Grading

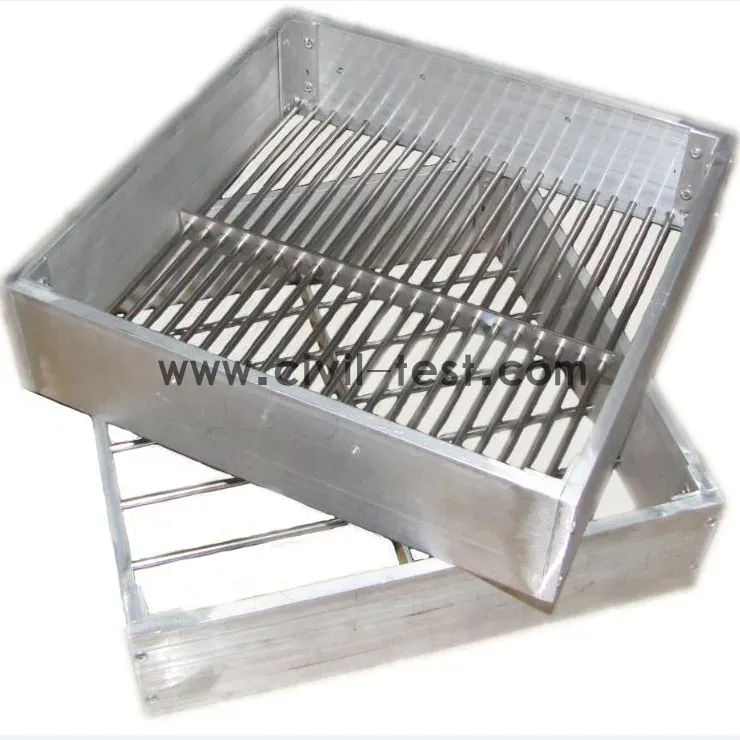

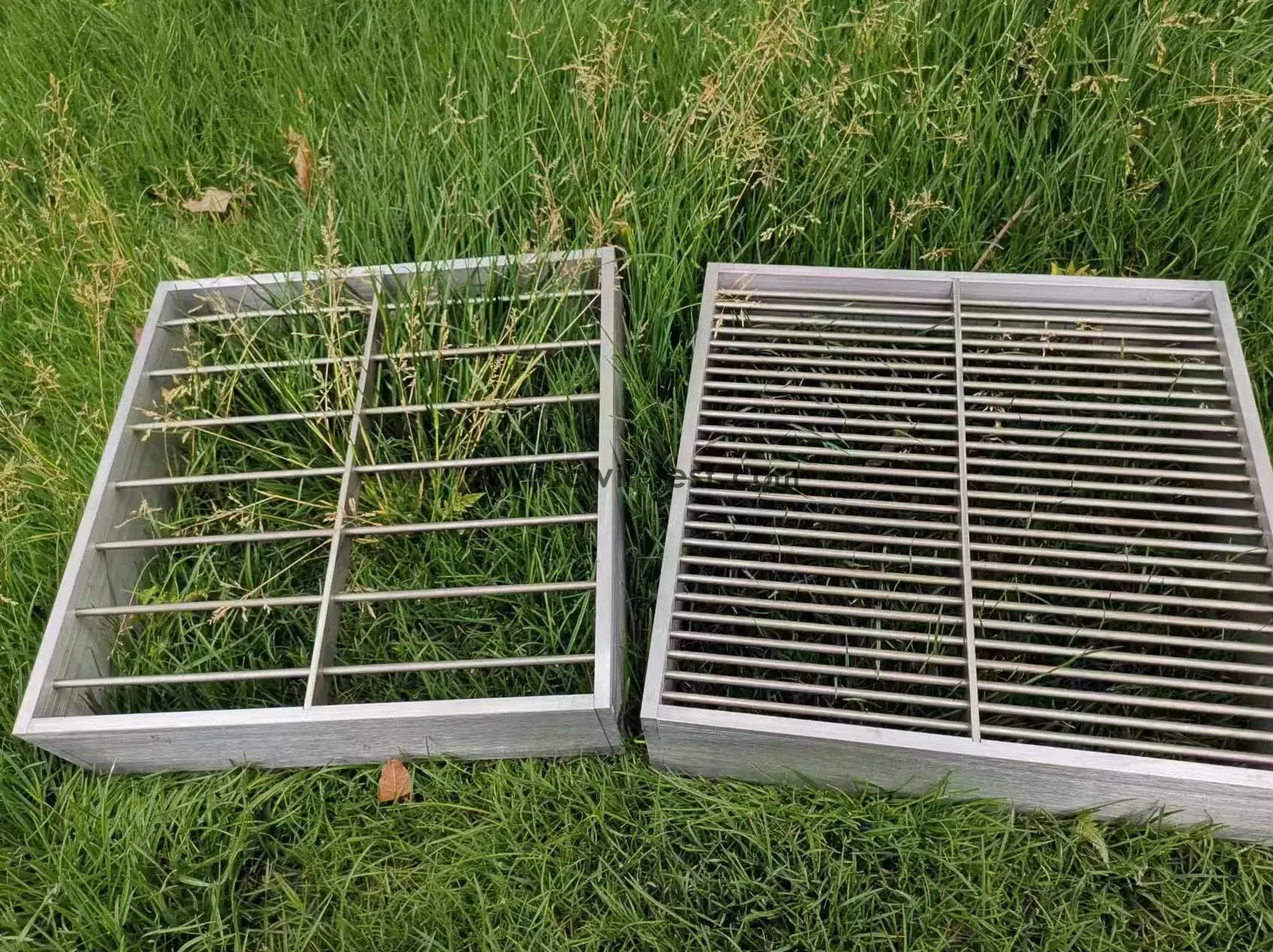

Grid Sieves Set used for determination of particle shape flakiness index of aggregate & suitable only for hand sieving. These are made using aluminium frames & stainless steel rods.
Technical Specifications:
Model | A-048 |
Material | Steel |
Size of sieve frame | 300mm x 300mm |
Thickness of Frame | 0.5mm |
Aperture Range | 2.5mm~31.5mm |
Total Quantity | 13pcs / Set |
Dimension in cm | 62×53×78cm |
Gross weight | 68kg |
Main Specifications :
Item NO. | Grid width | Frame thick (mm) |
A048-01 | 2.5mm | 1mm |
A048-02 | 3.15mm | 1mm |
A048-03 | 4mm | 1mm |
A048-04 | 5mm | 1mm |
A048-05 | 6.3mm | 1mm |
A048-06 | 8mm | 1mm |
A048-07 | 10mm | 1mm |
A048-08 | 12.5mm | 1mm |
A048-09 | 16mm | 1mm |
A048-10 | 20mm | 1mm |
A048-11 | 25mm | 1mm |
A048-12 | 31.5mm | 1mm |
A048-13 | 40mm | 1mm |
Total Quantity | 13pcs | |
Dimension | 62*63*78cm | |
Gross weight | 64kg | |
Packed material | Plywood case | |
