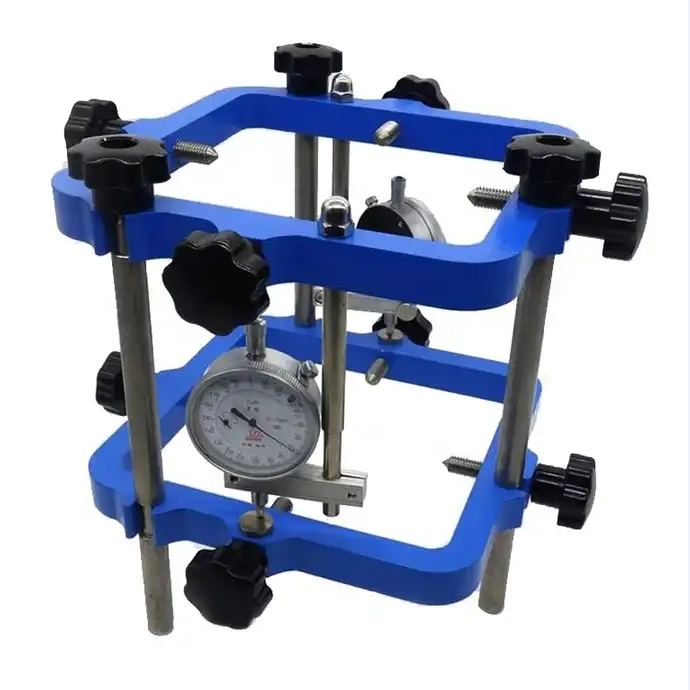

Elastic Modulus Tester Frame Structure
- Description:
Used to measure elastic modulus of concrete prism/cylinder specimen against static force.
- Product Introduction
Item No: TM-II-S Item Name : Elastic Modulus Tester for Harden Concrete Tester
Overview:
This product is mainly used to measure the elastic modulus of concrete test block. The instrument is simple, light and convenient to use in test.
Meet standards:
GB 1971-89 test method for mechanical properties of aerated concrete
Gb81-85 test methods for mechanical properties of ordinary concrete
JTG-2005 test specification for cement concrete of highway engineering
ASTMC-469
Specifications :
|
Main specification |
Data |
|
Distance between upper and lower ring |
150 mm |
|
Distance between base and lower ring |
75 mm |
|
Dial gauge |
1 mm * 0.001 mm 2pcs |
|
Sample size |
150*150*300 mm, 100*100*300 mm |
