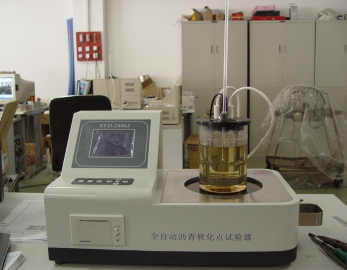

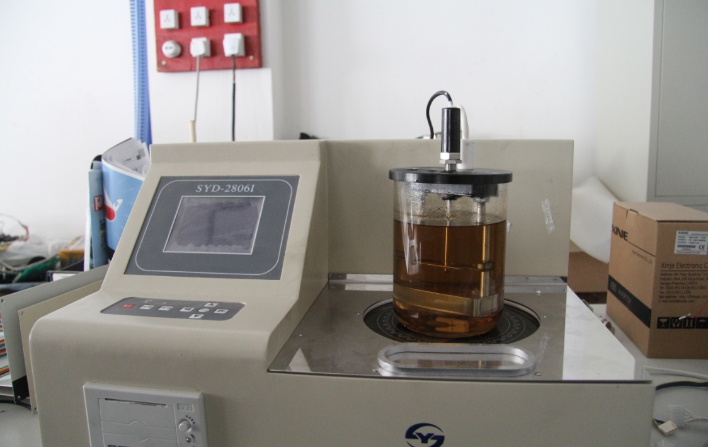

Automatic Asphalt Softening Meter (4-specimens )
- Description:
STANDARD : GB/T4507; ASTM D36; T0606
Automatic type, 4-sample at the same time . connect PC , can print test results
Application :
It is suitable to determine the softening point of asphalt, tar, liquid asphalt and other types of asphalt. It is the best choice of asphalt manufacturers, highway and bridge construction companies, college and universities, and research and development departments.
Previous : Asphalt Ductility Meter (1.5meter )
- Product Introduction
Features in Technology and development :

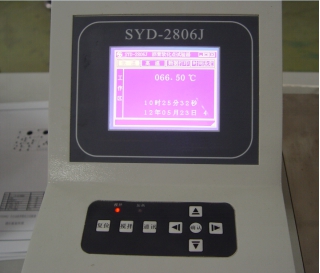

It adopts computer for controlling, electron photo-electricity for measurement, LCD for indication and Micro-printer for printing test data.
It also has the characteristics of linear heating temperature, even stirring speed
It can make test for 4- samples at the same time and determine softening point of samples automatically.
It is automatic, convenient and reliable,
It is the best choice of asphalt manufacturing companies, highway and bridge construction companies, college and universities, and scientific institutes.
Model |
SYD-2806H ( 4-SAMPLES and Automatic Model ) |
Digital Display |
LCD English data |
Temp range |
+5℃ ~ 80℃ ; +32℃ ~ 160℃ |
Temp frequency |
0. 1℃ |
Controlling heating time |
5.0±0.5℃ after 3 minutes |
Specimen Quantity |
4 Intelligent type |
Printer |
YES |
Detecting way |
Automatic |
Voltage |
220V±10V 50HZ |
Remarks : 1. the model can connect with PC computer by communication interface ; 2. we can supply video 3. It can determine resin as per customers’ requirements 4. operating training at factory are available free of charge , |
